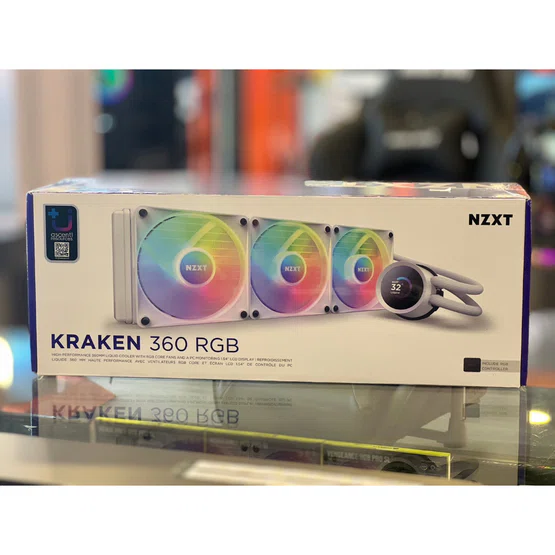

NZXT KRAKEN 360 RGB WHITE

Kraken specifications



Dimensions Diameter: 74.7mm H: 55.97mm

Material Block: Copper

Housing: Plastic

Motor Speed 800 – 2,800 ± 300 RPM

Power 12VDC, 0.3A

Length 400mm

Material Ultra-low Evaporation Rubber with Nylon Braided Sleeve

Material Plastic

Display Orientation Software adjustable Default, +90, +180, and -90 Degrees

Display Panel Active Area 1.54" (39.1mm) diagonal

Display Color 24-bit true color LCD

Display Resolution 240 x 240 px

Display Brightness 300 cd/m²

Display Panel Type Transmissive TFT, 262K color

Intel Intel Socket LGA 1700, 1200/115X

Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron

AMD AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included)

AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper

Limited Warranty 6 Years



Kraken RGB Models

Kraken 360 RGB

Model F120RGB Core Fans

Quantity 3

Dimensions 120 x 120 x 26mm

Speed 500-1,800 ± 180 RPM

Air Flow 78.86 CFM

Air Pressure 2.57 mm H2O

Noise 33.88 dBA

Bearing Fluid Dynamic Bearing

Power Consumption 12 V DC, 0.2 A, 2.4 W

Connector 4-pin PWM

Life 60,000 hours / 6 Years

Dimensions 121 x 394 x 27mm

Material Aluminum

Dimensions 63.2 x 53.2 x 12.8mm

Weight 52.8g

Mounting Magnet and 3M Dual Lock

Connection Cables 1x USB 2.0 internal connector

1x SATA power cable

Input Connector 12V DC / 2.6A

RGB Lighting Channels 3

Output Channel Voltage 5V DC

NZXT RGB Channel Output Up to 40 LEDs per channel

Up to 120 LEDs combined total for the total 3 channels
